Introducing
the Vibration Meter
NTi Audio is pleased to introduce the Vibration Meter.
Built on the advanced technology employed in the XL2 Sound Level
Meter, the Vibration Meter is an enticing addition to the NTi
product family, providing many functions for vibration
analysis.

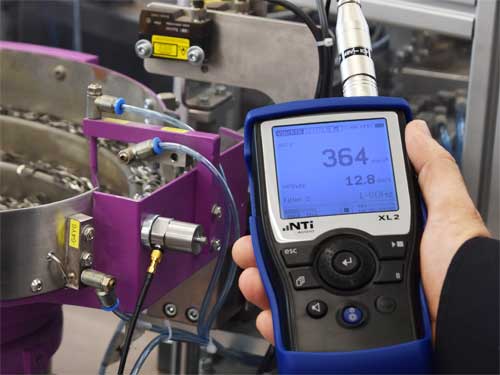

As soon as you connect a vibration sensor
via the ASD adapter, the vibration analysis mode is activated and
the Vibration Meter will measure acceleration accurately for
frequencies down to 0.7 Hz, as well as velocity and displacement.
Various filters and time weightings provide a gliding RMS level for
ease of displaying and reading peak values, making the Vibration
Meter suitable for many applications.
Typical
Screens of the NTi Audio Vibration
Meter
Spectrum in Octave and 1/3rd Octave-band
Resolution A spectrum is provided, with octave and
1/3rd resolution in a range of 0.8 Hz to 2.5 kHz. Spectrums can be
stored on the device for comparison with later measurements.
The real-time FFT spectrum is useful for identifying the
source and measuring vibration values. Analysis ranges from 1 Hz to
1.7 kHz.
Results are logged in plain text format for easy
import into Wordpad, MS Excel or similar. In addition, the vibration
signal can be saved as a compressed WAV file.
Pass /
Fail Analysis The Vibration Meter is well suited for
integration into a production line for quality control. It quickly
detects unwanted vibrations by comparing them against the spectrum
of a “good” result and automatically making the pass / fail
decision.
Turn your XL2 Sound Level
Meter into a Vibration Meter Adding the
Vibration Option to your existing XL2 Sound Level Meter gives you
the ability to switch between Vibration and Sound Level Meter mode.
The Vibration Meter from NTi Audio is the essential tool for the
vibration and acoustics consultant, who is looking for a reliable
solution for professional measurements.
